What Is the Legal Width for a Trailer in the U.S.?
The legal width for a trailer in the U.S. is 102 inches, or 8 feet 6 inches, on the National Network of highways. Anything wider crosses into oversize load territory and requires a special permit, plus added safety measures like flags, signs, and sometimes pilot cars.
Trailer width rules shift between federal highways, state roads, and local streets, and that’s where shippers get tripped up.
Below, we break down the federal width limitation, how state rules differ, what trailer types fit within the standard trailer dimensions, and what happens when freight is wider than the law allows.
How Wide Can a Trailer Be? The Federal Standard
The maximum width for a tractor trailer or combination vehicle on U.S. interstate highways is 102 inches (8 feet 6 inches, or 2.6 meters). This standard width came from the Surface Transportation Assistance Act of 1982, which extended the same width specification that buses had been allowed since 1976 to all commercial trucks and motor vehicles. Before 1982, the maximum was 96 inches.
The 102-inch rule applies to both the trailer itself and the load it carries. If a flatbed trailer is exactly 102 inches wide and the cargo extends a inch past either side, and the shipment qualifies as an oversized load. Any dimension over 102″ wide is over width.
Hawaii is the one state with a different federal allowance. Per the Federal Highway Administration, Hawaii’s maximum width on the National Network is 108 inches.

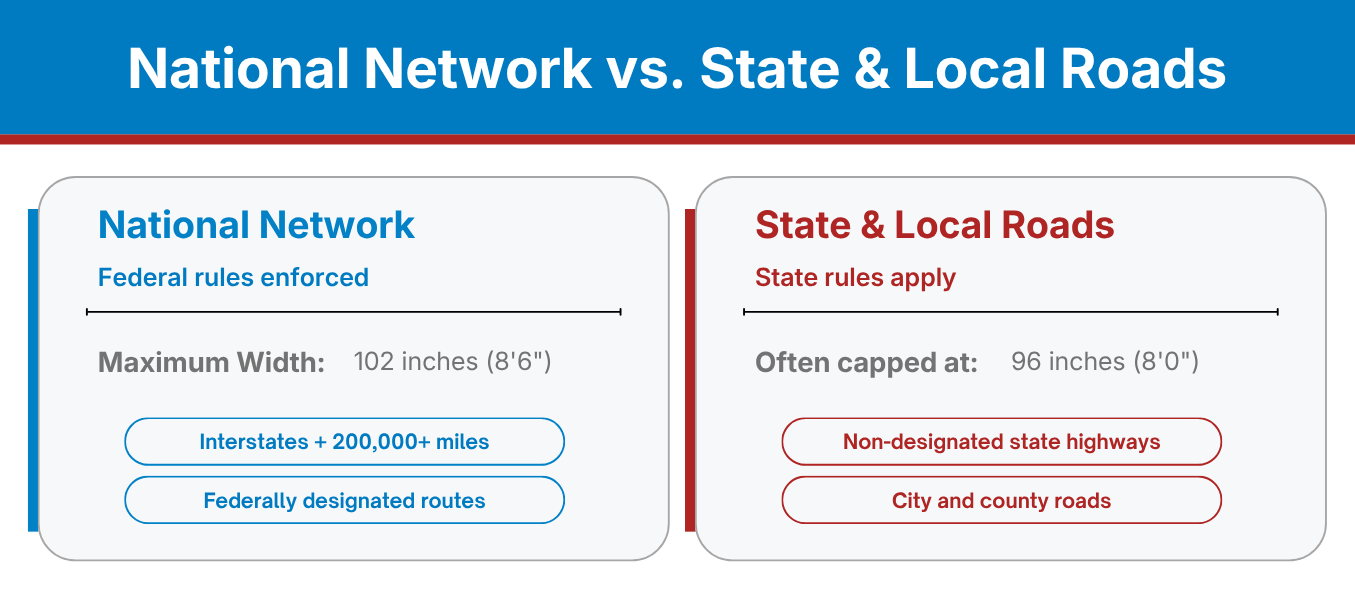

National Network vs. State Highways: Where the 102-Inch Rule Applies
The 102-inch federal limit applies on the National Network, which covers more than 200,000 miles of interstate and federally designated routes. State and local roads can have stricter width rules, so a trailer that’s legal on I-75 may not be legal on a county road two miles away.
What Is the National Network?
The National Network includes the entire Interstate System plus other federally designated highways that were part of the Federal-Aid Primary System on June 1, 1991. Federal width and overall length rules are enforced uniformly across these routes, which is why long-haul freight planning generally sticks to the Network whenever possible.
When State Rules Get Stricter
Many states drop the maximum width to 96 inches (8 feet) on non-designated highways and local roads. Cities and counties can restrict width further on roads under their jurisdiction. New York City, for example, limits commercial vehicles to 8 feet wide on most streets and on the New York Thruway, even though New York State allows 102 inches on designated routes.
Reasonable Access: The 1-Mile Rule
Federal law requires states to grant reasonable access between the National Network and terminals, fuel stops, food, repair shops, and rest areas, but how that access works depends on the state. The federal baseline is up to 1 mile from the Network by the most practical safe route, though many states apply stricter rules for oversize loads, with some requiring every stop to be written into the permitted route before the truck rolls. This is why most truck stops, distribution centers, and warehouses sit close to interstate exits. It’s also why oversize routing has to be planned mile by mile before pickup.
Standard Trailer Widths by Type
Most modern commercial trailers are built right up to the 102-inch (8 feet 6 inch) maximum width. Older trailers manufactured before 1982 may still measure 96 inches across, but the industry standard for new builds is 102 inches.
| Trailer Type | Typical Outer Width | Common Use |
|---|---|---|
| Dry Van (53′) | 102" (8’6") | Boxed and palletized freight |
| Flatbed | 102" (8’6") | Building materials, machinery, steel |
| Step Deck (Drop Deck) | 102" (8’6") | Taller freight that exceeds flatbed height |
| Double Drop / Lowboy | 102" (8’6") | Tall, heavy equipment with low center of gravity |
| Removable Gooseneck (RGN) | 102" (8’6") | Heavy machinery driven on and off |
| Conestoga | 102" (8’6") | Flatbed cargo needing weather protection |
| Reefer | 102" (8’6") | Temperature-controlled goods |
| Enclosed Car Trailer | 96" to 102" | Vehicles, motorcycles |
The inside of an enclosed trailer measures less than the outside. A 102-inch outer dry van usually has an interior width of about 98 to 100 inches once you account for wall thickness. That’s why pallet loading patterns are often planned around 100 inches of usable space rather than 102. To see the full breakdown of how many pallets can fit on a dry van trailer, read here.
What Doesn’t Count Toward Trailer Width
Federal rules exclude specific safety devices and accessories from a trailer’s width measurement, so a tractor trailer can extend past 102 inches at certain points without violating the law. The Federal Highway Administration lists the following as exempt from width calculations under 23 CFR 658:
- Rear-view mirrors
- Turn signal lamps
- Handholds for cab entry and exit
- Splash and spray suppressant devices, including mud flaps
- Load-induced tire bulge
- Tarps and tarp hardware
- Tie-down assemblies on platform trailers
- Other non-property-carrying devices that extend less than 3 inches past each side
This matters for flatbed shippers in particular. A flatbed loaded with chain binders, ratchet straps, or tarp hardware sticking out slightly is still legally compliant as long as the cargo and trailer body stay within the 102-inch limit.
When Is a Load Considered Oversize?
Any load wider than 8 feet 6 inches (102 inches) is classified as an oversize load and requires a state oversize permit. As width increases, the requirements get more demanding, with escort vehicles, restricted travel times, and even police escorts kicking in at higher tiers.
| Load Width | Classification | Typical Requirements |
|---|---|---|
| Up to 8’6″ | Standard | No permit required on the National Network |
| 8’7″ to 12’0″ | Oversize | State oversize permit, “Oversize Load” banner, flags |
| 12’1″ to 14’0″ | Wide oversize | Permit plus pilot or escort vehicle (varies by state) |
| 14’1″ to 16’0″ | Heavy oversize | Permit, multiple escorts, restricted travel times |
| Over 16’0″ | Superload | Multi-state permits, police escorts, possible road closures |
Permit fees vary by state, generally ranging from about $15 to $70 per permit, with additional processing fees in some places. Carriers that frequently move wide freight often set up state accounts to reduce paperwork and fees over time.
How State-by-State Width Rules Differ
The 102-inch federal width is the floor, not the ceiling, for state rules. States can be stricter on roads outside the National Network, and that creates real complications for freight that crosses multiple state lines. A few examples:
- California: 102 inches on most highways, with cities allowed to restrict to 96 inches on roads under city jurisdiction
- New York: 102 inches on designated highways, 96 inches in NYC and on the Thruway
- Hawaii: 108 inches allowed (the federal exception)
- Most other states: 102 inches on designated routes, 96 inches on non-designated state highways and local roads
Multi-state route planning is one of the harder parts of moving wide freight. The same load may travel under different permit conditions in each state, and weight limitations, escort rules, and time-of-day restrictions all change at the state line.
Skip the Permit Headache. Let Mercer Handle It.
Mercer’s team handles permitting, route planning, and compliance from pickup to delivery, so your freight moves safely and on schedule across every state line.
Permits, Escorts, and Safety Requirements for Wide Loads
Moving any load wider than 102 inches requires a state-issued oversize permit. Depending on the width, the load may also need pilot vehicles, warning devices, and limits on when it can travel. The Department of Transportation in each state controls its own permit process.
Oversize Permits
Each state issues its own permits covering specific routes, dates, and load dimensions. Permits are usually valid for a single trip, though annual permits exist for carriers that move similar loads regularly.
Pilot Cars and Escort Vehicles
Most states require pilot cars when load width exceeds 12 feet. Above 14 or 16 feet, multiple escorts and law enforcement involvement are common. Lead and rear escorts have to maintain radio contact during transit and warn the driver of upcoming hazards like low bridges or narrow shoulders.
Flags, Signs, and Lights

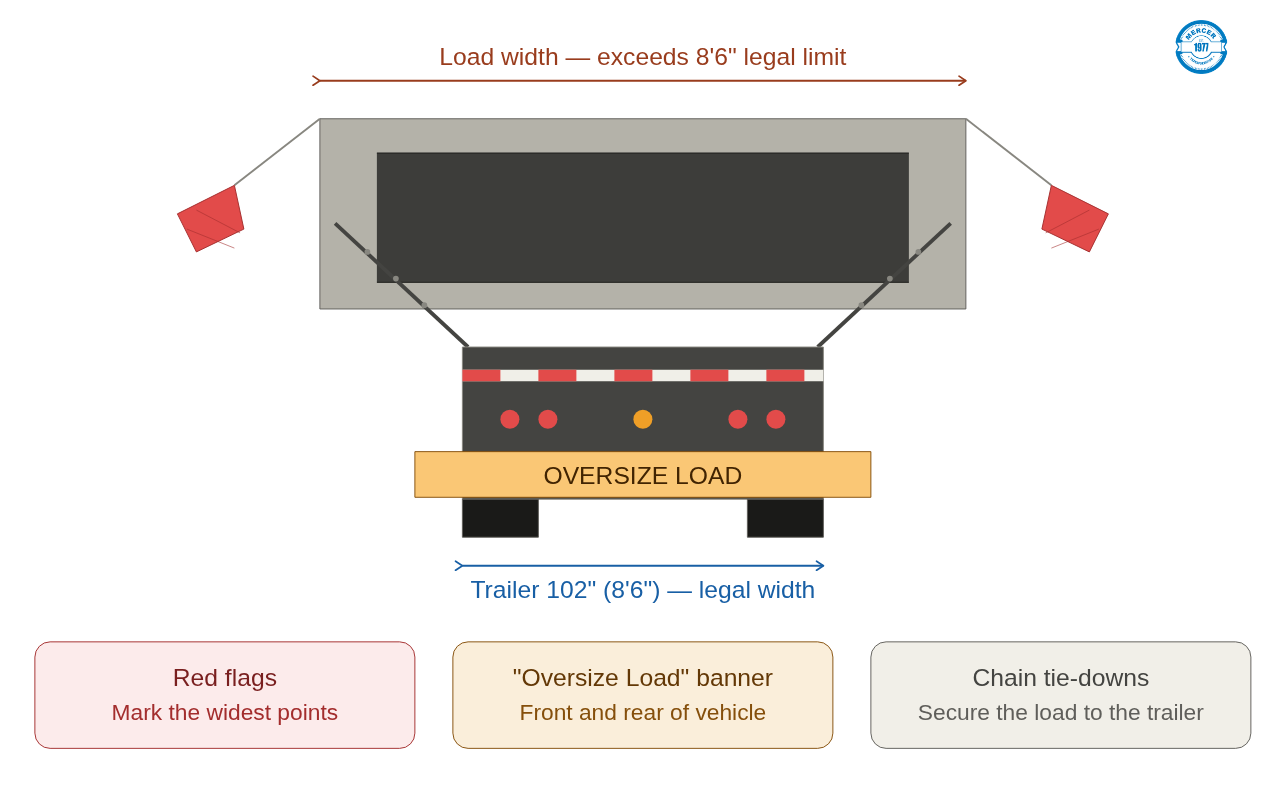

An “Oversize Load” banner has to be displayed across the front and rear of the vehicle. Red or orange flags mark the widest points of the load. For night moves or travel during fog or rain, amber warning lights replace or supplement the flags.
Time of Day and Holiday Restrictions
Loads wider than 10 feet are often restricted to daylight hours. Many states block oversize movement on weekends and major holidays, with travel typically pausing at noon the day before a holiday and resuming the day after. Violating these conditions can void the permit and trigger fines.
How Trailer Width Compares to Other Legal Trailer Dimensions
Width is one of three trailer dimensions regulated on U.S. highways.
Height and Vertical Clearance
There is no federal height limit for motor vehicles. Each state sets its own rule, with most allowing between 13 feet 6 inches and 14 feet of total height. Loads taller than the state limit need an oversize permit and may require escort vehicles.
Total Length and Length Limitations
Federal law sets a length limitation on semi-trailers in a tractor-trailer combination at a minimum of 48 feet, with most states allowing 53-foot trailers on the National Network. There is no federal cap on the total length of a tractor and a single semi-trailer on the National Network, though many states impose a limit on non-designated routes, typically 60 to 75 feet.
Double Trailer and Combination Vehicle Rules
A double trailer combination, meaning a tractor pulling two trailing units, has its own length and weight rules. States must allow each trailing unit to be at least 28 feet long on the National Network. Width still maxes out at 102 inches, no matter how many trailers are in the combination.
Why Trailer Width Matters Beyond the Legal Limit

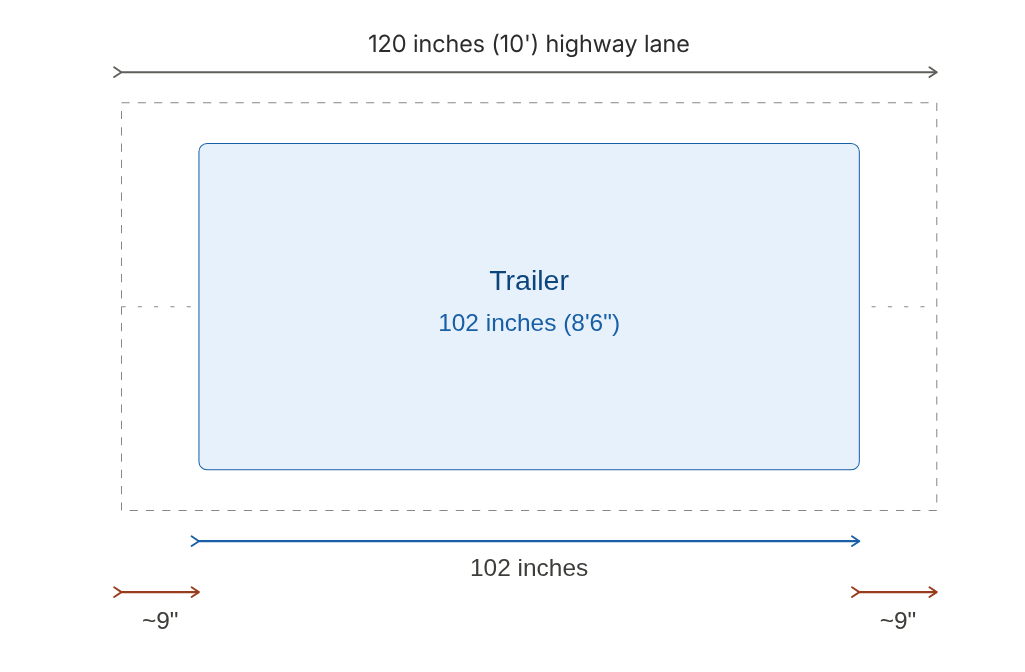

Width rules exist to keep highways safe, protect bridges and tunnels, and prevent sideswipe collisions in narrow lanes. Most U.S. highway lanes are 10 feet wide, which leaves only about 9 inches of clearance on each side of a 102-inch trailer. Add wind, weather, or construction zones, and that margin shrinks fast.
Penalties for moving an over-width load without a permit are steep. Fines, load impoundment, and out-of-service orders are all common outcomes. Insurance claims tied to a non-compliant move can also be denied, leaving the shipper or carrier on the hook for damaged freight. That’s why working with a carrier that takes safety and compliance seriously is more than a paperwork exercise. It’s protection for everyone on the road and for the freight itself.
